Specification

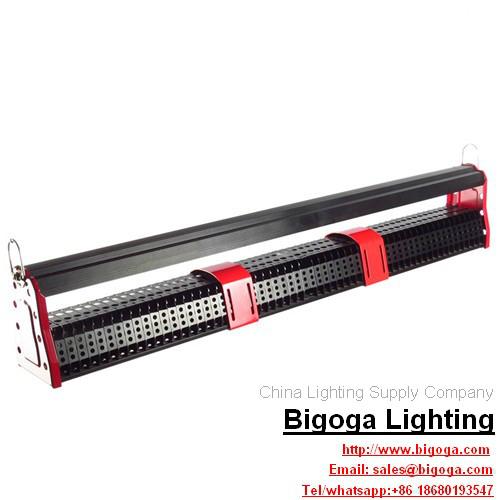

Lamp name: LED High Bay Light
Model: BGG-HBLA150W
Input voltage: AC110V, AC220V, AC240V
Power frequency: 50~60Hz
Lighting power: 150W
Light source: Osram 3030 SMD LED
Luminous efficiency: 110lm/W
Lumen: 16500lm
Color temperature: warm white/ day light/ pure white
Power supply: IP67 waterproof driver
Power factor(PF): >0.98
Total harmonic distortion(THD): <15%
Color rendering index(CRI): Ra>80
Junction temperature(Tj): 65℃ ± 10% (Ta= 25 ℃)
System thermal resistance(Rja): 0.45℃ / W
Working temperature: -30℃~55 ℃
Working humidity: 10 % ~ 90 % RH
Housing material: aluminum
Lifespan: 50000H
Protect standard: IP65 rated
Body size: 840x110x150mm
Packing size: 91x17x22cm
Warranty: 3 years
Surge protector 10KV lightning protection ( external)
Features:
1. The power saving rate is high, save the electricity consumption 60%-200% compared with the traditonal lamps.
2. Long life, generally can reach 50000 hours.
3. The most environmentally friendly, without mercury and other harmful elements.
4. Good color rendering index, color temperature is adjustable.
5. LED belongs to the non glass products, good shock resistance, safety and easy to storage and transportation.
6. Fast start.
7. Innovative modular design, easy maintenance.
Applications:
Our led bay light has utilized in many applications including canopy, workshop, warehouse, barn, exhibition, stadium, logistics centre, shipbuilding plant, mine, highway toll station, gas staion, supermarket, plaza and other places.
Why Choose Bigoga?
1. Product design advantage. Professional heat dissipation structure, increase the heat dissipation performance, and extend the life of the whole lamp.
2. Reliability, modularity, standardization, compatibility, versatility, system and intelligence are our design indeas.
3. From the product design, testing, production automation link to ensure the reliability of the product.
4. The key parts standardization and generalization, convenient to replace the key components from different manufacturers.
